Stahlwille Multipower Torque Multiplier - ST 96531500
A Torque Multiplier is a mechanical tool used to increase the amount of torque applied to a fastener, such as a bolt or nut. It is typically used in high-torque applications where a standard hand tool like a wrench or ratchet is insufficient or impractical. Torque multipliers are commonly used in industries such as automotive, construction, heavy machinery, and maintenance, where high torque values are required to tighten or loosen fasteners securely.
Features:
- Especially compact design
- Light and handy
- Includes ratchet function
- Working angle 8 deg
- Includes angle of rotation scale
- To be used with a torque wrench with fixed 1/2" square
- Patents pending

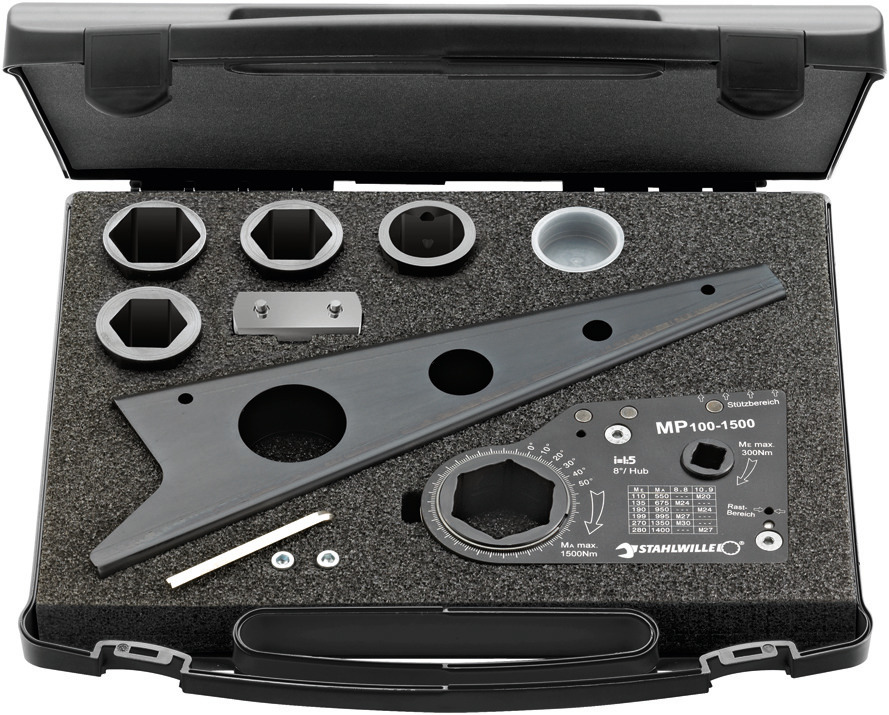

- Includes carrying case
- Scope of delivery - 3 hexagon inserts SW 30, 32, 36mm, 1 insert with 1" external square, 1 reaction arm 400mm
- Indication deviation +/- 5 %
Specifications:
- Gear Ratio: 5.62 : 1
- Internal Square Size: 1/2 in
- Overall Length: 165mm
- Torque Transmission: 1 : 5
- Overall Weight: 4.17 lbs
- Maximum Input Capacity E1: 300 Nm
- Maximum Input Capacity E2: 221 ft.lbs
- Maximum Output Capacity E1: 1500 Nm
- Maximum Output Capacity E2: 1106 ft.lbs
Product Dimension (Refer Image):
- Height h Size: 30mm
- Width b Size: 105mm
- Type:
- Torque Multiplier
- Internal Square Size:
- 1/2"
- Overall Length:
- 165mm
- Maximum Input Capacity E1:
- 300 Nm
- Maximum Input Capacity E2:
- 221 ft.lbs
- Maximum Output Capacity E1:
- 1500 Nm
- Maximum Output Capacity E2:
- 1106 ft.lbs
