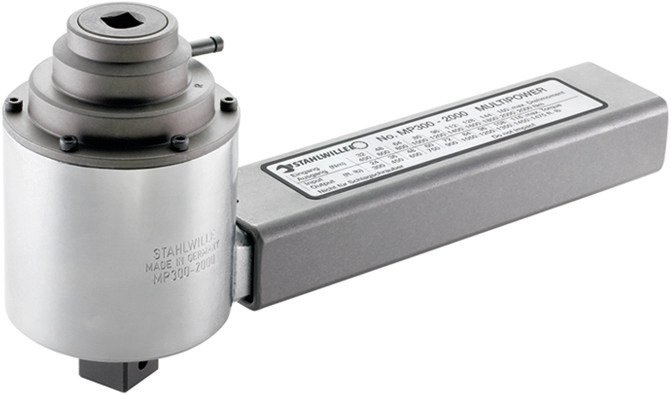

Stahlwille Multipower Torque Multiplier, Size 2000 - ST 53032000
A Torque Multiplier is a mechanical tool used to increase the amount of torque applied to a fastener, such as a bolt or nut. It is typically used in high-torque applications where a standard hand tool like a wrench or ratchet is insufficient or impractical. Torque multipliers are commonly used in industries such as automotive, construction, heavy machinery, and maintenance, where high torque values are required to tighten or loosen fasteners securely.
Features:
- Includes overload protection and planetary gears
- Includes carrying box
- one spare sun wheel (overload cut-out)
- Deviation of indication +/-5%
Specifications:
- External Square: 1 in
- Gear Ratio: 16 : 1
- Internal Square Size: 1/2 in
- Overall Length: 330mm
- Size: 2000
- Torque Transmission: 1 : 12.5
- Overall Weight: 15.43 lbs
- Maximum Input Capacity E1: 160 Nm
- Maximum Input Capacity E2: 118 ft.lbs
- Maximum Output Capacity E1: 2000 Nm
- Maximum Output Capacity E2: 1475 ft.lbs

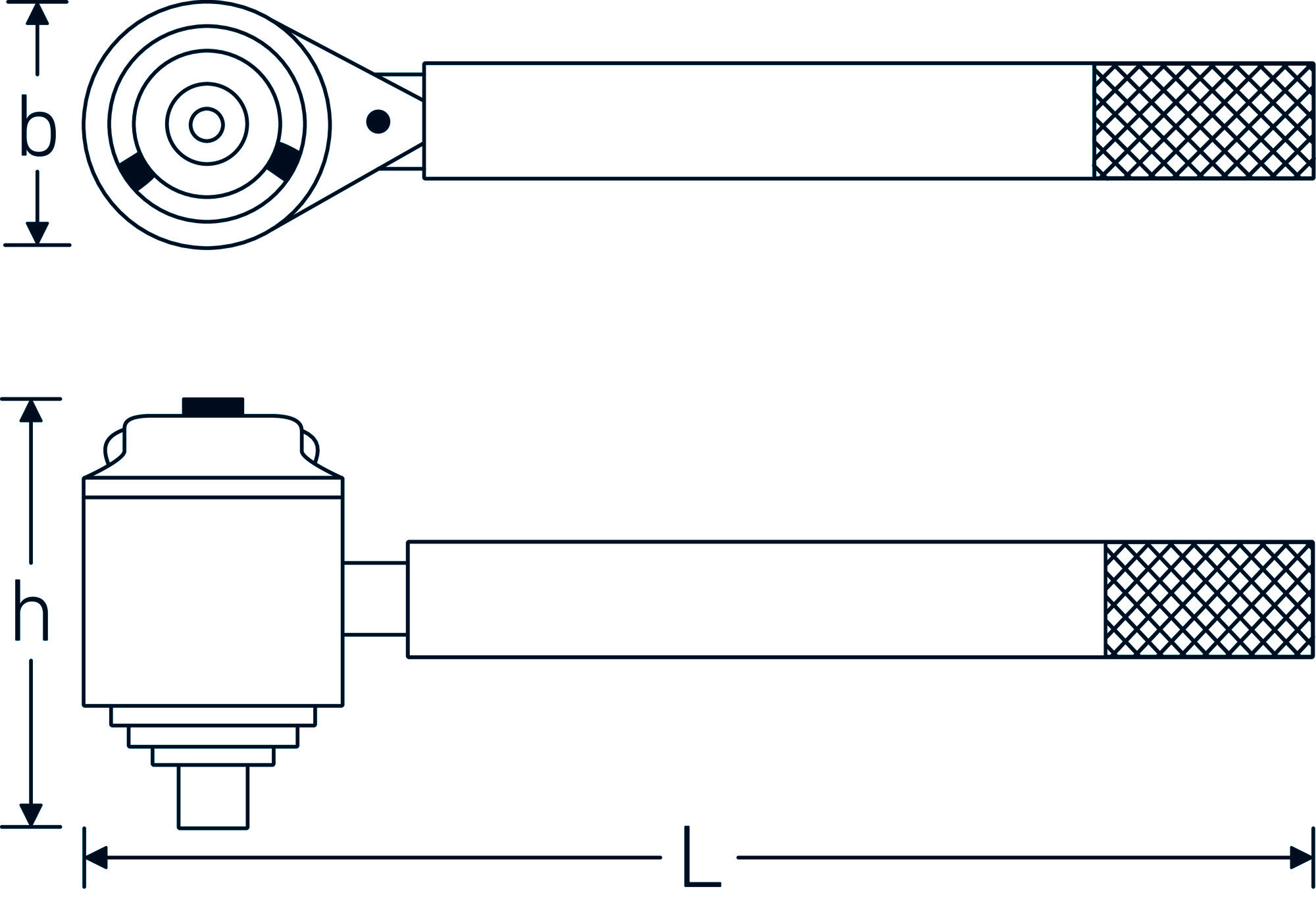

Product Dimension (Refer Image):
- Height h Size: 161mm
- Width b Size: 95mm
- Type:
- Torque Multiplier
- External Square:
- 1"
- Internal Square Size:
- 1/2"
- Overall Length:
- 330mm
- Size:
- 2000
- Maximum Input Capacity E1:
- 160 Nm
- Maximum Input Capacity E2:
- 118 ft.lbs
- Maximum Output Capacity E1:
- 2000 Nm
- Maximum Output Capacity E2:
- 1475 ft.lbs
