Stahlwille Open Ended Insert Tool, 7/16 in, 9 x 12mm - ST 58611028
An Open-Ended Insert Tool is a type of interchangeable tool head that can be attached to a torque wrench or handle, typically used for precise torque applications. It has an open-ended, U-shaped design that allows it to grip the flat sides of a nut or bolt head, similar to a standard open-ended spanner. The insert tool is designed to be modular, fitting into a compatible handle or torque wrench through a secure connection point, such as a dovetail or quick-release mechanism.
Features:
- For square drive torque wrenches
- Fixation by pin lock
- Chromium over nickel, durable and chip-proof finish
- Drop-forged, hardened and cooled in oil bath
- Extremely resilient, exceptionally durable
Specifications:
- Overall Height: 5.5mm
- Output Size: 9 x 12mm
- Overall Weight: 0.08 lbs
- Wrench Size: 7/16 in

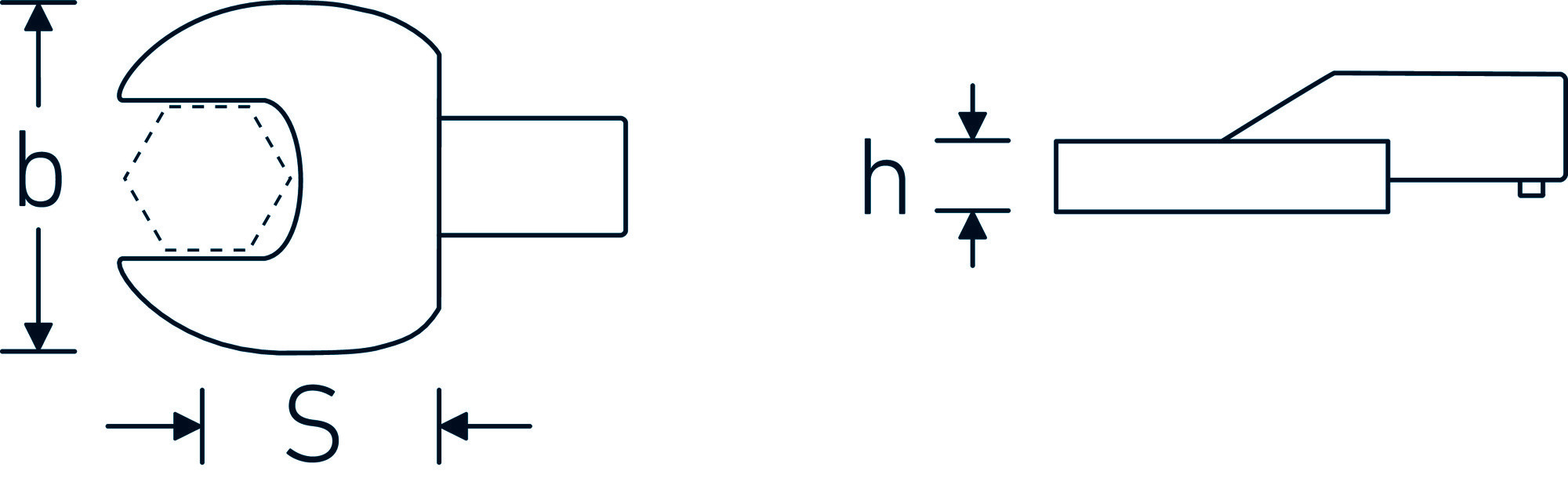

Product Dimension (Refer Image):
- Width b Size: 26mm
- S Size: 17.5mm
- Type:
- Open Ended Insert Tool
- Overall Height:
- 5.5mm
- Output Size:
- 9 x 12mm
- Wrench Size:
- 7/16"
