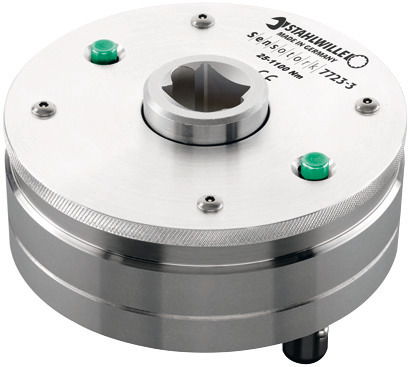

Stahlwille Transducer with Case, 25 - 1100 Nm, 18 - 812 ft.lbs - ST 96521028

A Transducer is a device that converts one form of energy into another, typically for measurement, control, or sensing purposes. Transducers are essential components in various industries, such as automotive, aerospace, medical, and industrial applications. They are used to convert physical quantities like pressure, temperature, light, sound, or force into electrical signals, which can be measured, monitored, or analyzed.

Features:

• Patented
• For calibration of torque spanners and torque screwdrivers
• High accuracy due to measured value preparation and digitization directly in the transducer
• Insensitive to transverse forces due to particularly flat design
• To be used as part of calibration systems
• Includes certificate
• Supplied in sturdy plastic box

Specifications:

• Display Deviation +/- 1%: 25 - 1100 Nm
• Display Deviation +/- 1%: 18 - 812 ft.lbs
• Display Deviation +/- 1%: 221 - 9736 in.lbs
• Internal Square Size: 3/4 in
• Mount Arm: 25 Nm
• Nominal Value: 1,100 Nm
• Overall Weight: 6.61 lbs

Product Dimension (Refer Image):

• d Size: 120mm
